Cycloidal pin wheel reducer

2018/8/6

Summary：
　　Cycloidal pin gear planetary reducer is a new type of reducer with advanced design and novel structure, which is based on the principle of planetary transmission and adopts cycloidal pin teeth meshing. It is widely used in petrochemical industry, light industry and food, pharmaceutical, textile printing and dyeing, metallurgical mines, sewage treatment and construction machinery and other transmission machinery reducer.
>>Working environment temperature is －25～40℃
>>Oil tank temperature rise not exceeding 45℃，Maximum oil temperature not exceeding 80℃
>>Allowing positive and negative operation
Type ：

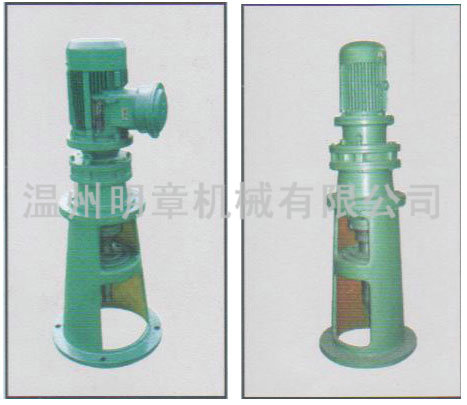

>>Vertical double shaft, vertical direct connection, vertical non-direct connection, horizontal double shaft, horizontal direct connection, horizontal non-direct connection, vertical inverted hanging double shaft, vertical inverted hanging direct connection, two-stage double output shaft
Characteristic ：
>>The deceleration ratio is big: the single stage transmission is 9~87, the two-stage transmission is 81~5133, and the three stage transmission can reach 5841~658503.
>>Compact structure, small size: Compared with other reducers of the same power, the volume weight is less than 1/3, the input shaft and output shaft are on the same axis, so that the model can be as small as possible, easy to install and debug.
>>Smooth operation, large bearing capacity: more meshing teeth, large overlap coefficient, internal force balance, so that vibration and noise to a minimum.
>>High transmission efficiency, long service life: pin tooth meshing transmission for rolling friction, the main parts are used bearing steel, after heat treatment hardness up to HRC60, wear and impact resistance, long service life, efficiency up to 90%.
Explain ：
>>The output shaft head structure can be divided into three types: universal type, clamshell type and 1:20 taper general thread type.
>>The motor installation type is 85 and V1.
>>Horizontal type mainly oil bath lubrication, vertical type X4 (B2, B18) and the following models using oil lubrication, fundamentally eliminate the phenomenon of oil leakage.
>>Vertical X10 (B7, B45) and above models, vertical inverted X5 (B3, B22) and above models are lubricated by circulating oil injection.
